Our engineers have developed a number of loading arms for specialized service applications. If your application does not quite fit with any of the models listed please contact your distributor who will speak to us about what you require.
TOP UNLOADING ARM WITH HEATING LINE FOR RAIL CARS - E2710
The E2710 Top Unloading Arm with Heatin Line is especially designed to heat up and unload frozen products. It is suitable for the top loading / unloading of rail tankers.
Because of the robust and high quality design of the swivel joints and the precise loading arm balancing, the loading arm is very easy to hande.
By unloading through the nozzles at the end of the drop pipe, hot product will be sprayed into the vessel. The frozen product in the vessel will be warmed up and can be sucked off through the product pipe. The drop pipe can be turned so that the whole vessel can be reached with hot product.
It is possible to fasten a movable holding bar (covering plate) for a level controller. The up and down movement of the A-length is provided by a pneumatic or hydraulic cylinder.
Tubo de succión 100 DN
Tubo de calefacción 50/80 DN
Rango de temperatura: Alta temperatura de -40 ºC a +200 ºC
- Suction tube 100 DN
- Heating tube 50/80 DN
- Special materials
Temperature range:High temperature from -40° C up to +200° C
- Cover plate
- Support bracket
PTFE LINED LOADING ARMS
Our PTFE Lined Loading Arm is especially designed for loading/unloading of acids and caustics (e.g. 33 % hydrochloric acid, 30 % sulphuric acid etc.).
This loading arm is suitable for closed and open top loading/unloading of road and rail tankers with flange connection or cone. The closed system prevents the escape of poisonous and aggressive vapor.
The loading arm has a long reach and is suitable for applications where the tanker connection flange cannot be accurately positioned.
Because of the robust and high quality design of the swivel joints and the precise loading arm balancing, the loading arm can be handled with ease.
An inlet flange can be included in down stream designs and alternative variations of the loading arm are possible.
Other Loading Arm variants can be provided with this lining if required.
- DN 50
- DN 80
- DN 100
- DN 150
- Spring cylinder
- Counter weights
- -50° C to +150° C
- 10 bar
Material of product carrying components – Loading arm:
- Carbon steel
- Stainless steel
Material of product carrying components – Drop pipe – open filling:
Material of swivel joint seals:
Material of lining:
- PTFE electrically conductive

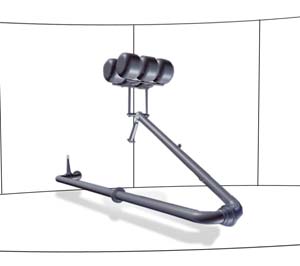

FLOATING SUCTIONS - C0001 - C0013, C0015 - C0093
Our Floating Suctions come in a range of designs to suit buried, above ground, semi-buried and vertical tanks as well as for use with articulated drainage units with a floating ceiling/roof.
Floating Suctions have the following advantages when compared with permanently fixed bleeding nozzles:
- The product is always transferred in a defined distance under the liquid level
- Contamination dirt, sediments, solid particles and heavy fluids remain on the tank bottom ensuring constant quality, independent from liquid level
- Ease of steering and long lifetime due to the swivel joint ball bearing
- Easy to mount due to internal swivel joint flanging
- Robustness against pressure conditions (pressure variations) in tank and tube
- Minimal vortex formation through optimized inlet with anti-vortex suction
- Pressure-proof floats
Materials of product carrying parts:
Aluminum, Steel or Stainless Steel
Materials of seals:
Buna, Viton or PTFE (other seals available on request)
Design temperature:-10° C up to +50° CVariante
Various designs, depending on the tank dimensions and types:
C0001 – C0003 for use in semi-buried tankage with lateral outlet on the centre-line – single armC0004 – C0008 for use in buried tankage with the outlet through the manhole – single armC0009 – C0011 for use in above ground tankage with lateral outlet near the bottom – single armC0012 – C0013 for use in vertical storage tanks with lateral outlet near the bottom – double arm or triple armC0015 for articulated drainage units with floating ceiling/floating roof – double armC0093 for articulated drainage units with floating ceiling/floating roof – single arm
Sizes: DN 50 to DN 500

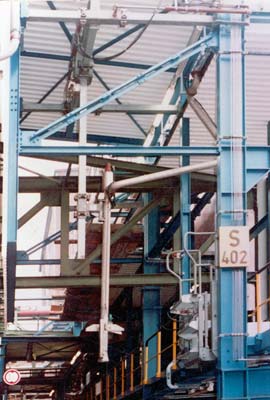

SPOT LOADING SYSTEM
Our Spot Loading System is an automatic loading system with manhole detection. It comes with our carbon steel swivel joint which has a hardened ball race way to provide a long service life.
The position of the manhole is detected by a CCD-Camera and an ultra sonar sensor and its coordinates are stored in the CPU (Central Processing Unit). From this information the drop tube will automatically drive to the manhole.
The system can run hydraulically or electrically. The correct connection will be supervised by a Connection Detection System which is works with a proximity switch.
The filling process will be released from the customer’s control room. Overfill of the tank is prevented by an Overfill Safety Device. The CPU includes a PLC (Programmable Logic Controller) system.
- Aplicaciones químicas
- El sistema se puede ejecutar tanto en forma eléctrica como hidráulica
- Un sistema de detección de conexiones, que funciona por medio de un conmutador de proximidad, comprueba la correcta conexión
- El proceso de llenado se acciona desde la sala de control del cliente
- Este sistema incluye un dispositivo de seguridad en caso de sobrellenado
- La CPU incluye un sistema PLCEl diseño estándar incluye la junta giratoria de acero al carbono D2000 con anillo guía templado
